Professor Vector DXF Sample
These DXF files can be read by these program and more...
Download ProfessorVector_shapes.zip
Zip file contents
Archive: ProfessorVector_shapes.zip
Length Date Time Name
-------- ---- ---- ----
45313 10-30-22 11:26 arc-sample.dxf
340443 10-30-22 11:26 flange-sample.dxf
75466 10-30-22 11:27 gear-sample.dxf
42164 10-30-22 11:27 heart-sample.dxf
11816 10-30-22 11:27 ngon-sample.dxf
12640 10-30-22 11:27 penrose-sample.dxf
307595 10-30-22 11:28 plate-sample.dxf
250437 10-30-22 11:28 spiral-sample.dxf
11682 10-30-22 11:28 star-sample.dxf
343015 10-30-22 11:28 text-sample.dxf
51820 10-30-22 11:28 weave-sample.dxf
341303 10-30-22 11:29 ying-yang-sample.dxf
-------- -------
1833694 12 files
Download ProfessorVector_shapes.zip

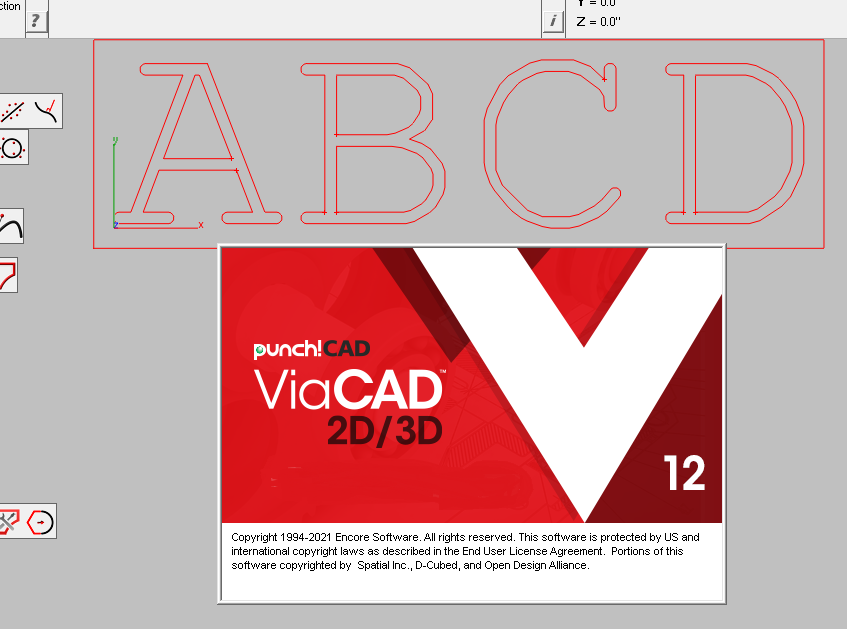

PunchCAD! ViaCAD 12

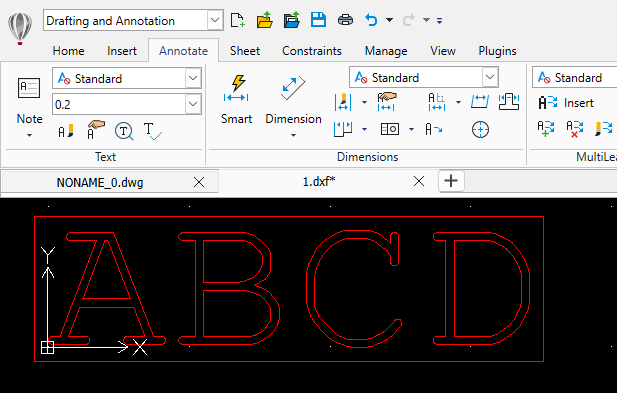

Corel Draw

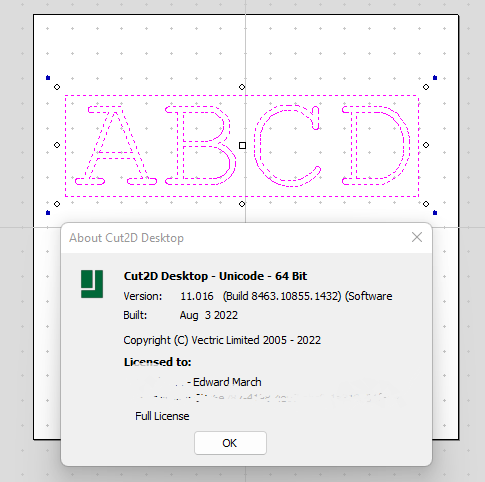

Vectrics CNC App

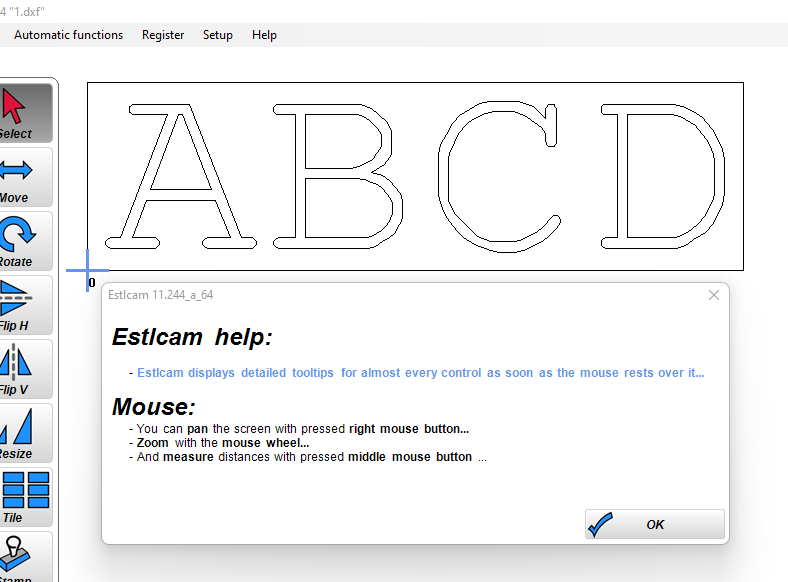

EstlCAM

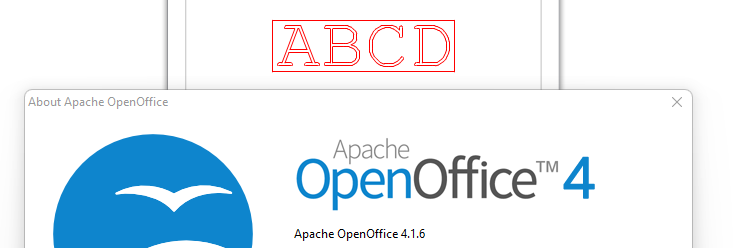

Open Office Draw

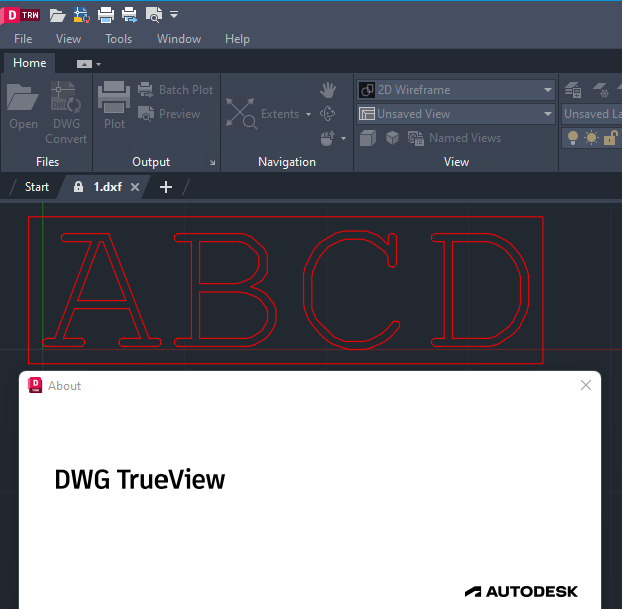

Autodesk True DWG/DXF View

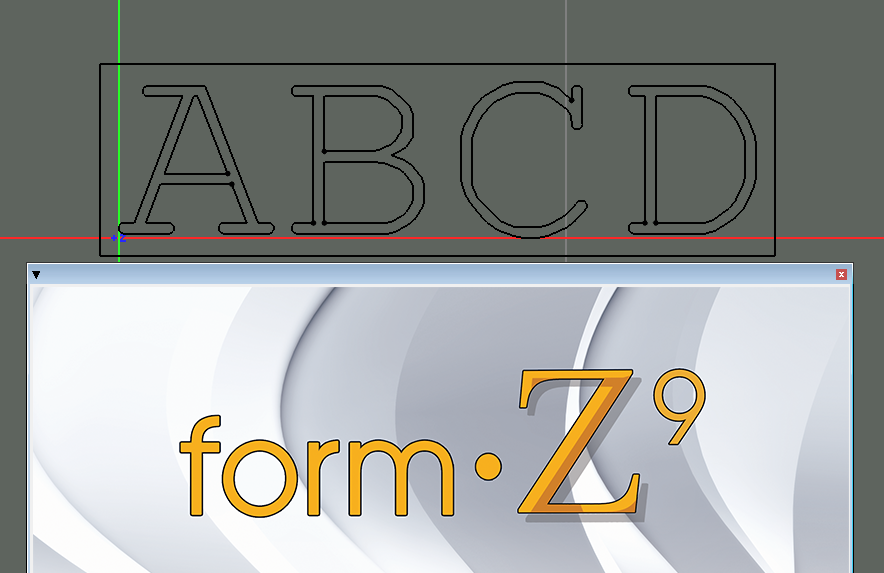

Free Form Z9
LibreCAD
LibreCAD is the only app we had issues with.See the Gallery of shapes
